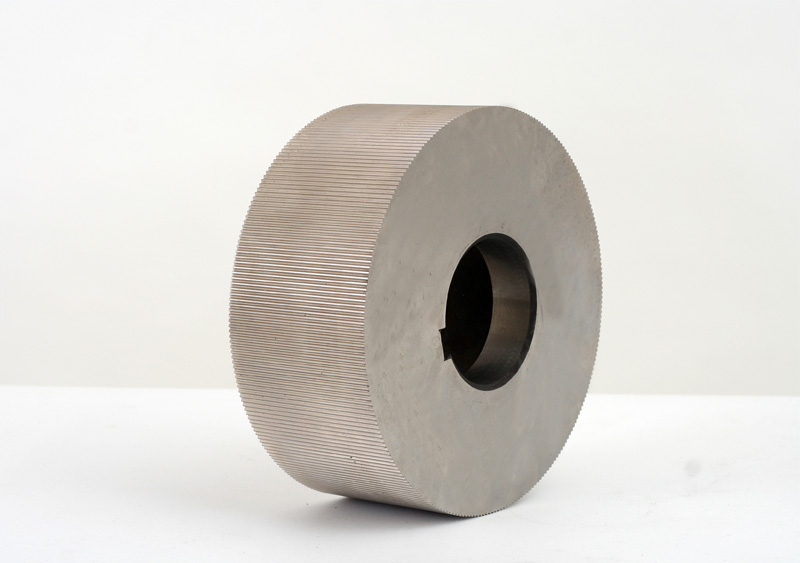

Serration Rolls
- We Manufacture Variety of:
- Knurling Rolls
( as per Din 82 / IS 3403) - Serration Rolls
( as per TS 12316/ N 442 / IS 3654 / Din 5481/ HES-A1016) - Spline Rolls
(as per Din 5480) - Diamond Knurling Rolls
- Incremental Rolls
- Sync Rolls
We also make special rolls as per customers drawing upto Ø 300mm.
| STEELS USED IN MANUFACTURER OF SERRATION ROLLS | |||
| Steel | APPLICATION | HARDNESS OF ROLL | |
| AISI D2 | USED FOR COMPONENTS UPTO 16HRc | 59 - 61 HRc | |
| DELTA STEEL | USED FOR STAINLESS STEEL (EXCEPT 202) AND HARDEND COMPONENT ROLLING UPTO 32 HRc | 61 - 63 HRc | |
| Keyway (C11) |
|||
| Bore Diameter d (H7) | Width F | Depth d1 | Width of Thread Roll (W) |
| 40 | 12 | 4 | From 30 mm to 180 mm |
| 54 | 12 | 4 | |
| 63 | 12 | 4 | |
| 69.85 | 12.7 | 5 | |
| 80 | 16 | 5 | |
| 100 | 16 | 5 | |
| Type of Machine | Max. Dia. of Thread Roll in mm. | Recomended Max. Width of Roll in mm. |
| Praga 511 | 100 | 50 |
| WMW 8 ton | 125 | 80 |
| Baco Smith | 130 | 80 |
| Praga 512 | 170 | 130 |
| MTR - 15 170 | 130 | 130 |
| WMW 12.5 Ton | 185 | 150 |
| Praga 513 | 200 | 150 |
| Praga 514 | 230 | 150 |
| WMW 25 Ton | 230 | 180 |
